作者：admin 發布時間：2023-09-12 15:09 瀏覽次數 :0

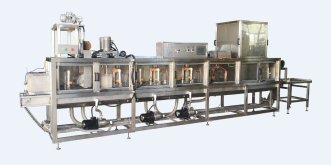

全自動水洗干燥機
Battery washing and drying machine
使用范圍/scope of use | 摩托車蓄電池表面清潔/Motorcycle battery surface cleaning | |
型號/type | JSXG-26M | |
加工能力/processing capacity | 700只piece/時hour | |
電源和功率/power source | AC380V, 50HZ ,27KW | |
設備重量（含附件）/weight | 1300kg | |
外形尺寸/dimensions | 6800*800*2190（mm）包括收集平臺尺寸Includes collecting platform dimensions | |
工作臺面/working desk | 6800*800(mm) | |
顏色/color |
| |
主要材質/main material | 不銹鋼/stainless steel | |
特性描述：去除電池外殼上的酸液殘留。/Feature Description: Remove acid residue from the battery casing. | ||
1、設備組成部分：電器控制、氣動控制、機架/Equipment components: electrical control, pneumatic control, rack | ||
2、備件清單： 光電開關2個、按鈕2個、加熱管10根 /Spare parts list: 2photoelectric switches, 2 buttons, Heating 10 tubes 易損件：加熱管 /Heating tube 光電開關/photoelectric switch | ||
3、輔助材料：無/Auxiliary material: none | ||
4、配置說明： 臺灣臺創減速機、臺達觸摸屏、三菱PLC、亞德客氣動元件/Configuration instructions: Taiwan Taichuang reducer, Delta touch screen, Mitsubishi PLC, Yadeke pneumatic components | ||
以上設備顏色均可根據客戶提供顏色定制，不銹鋼除外。/The above equipment colors can be customized according to the color provided by the customer, except for stainless steel.
